Boiling Spray Fluidized Cooler The Ultimate Drying Solution for Food and Chemical

Name: Boiling Spray Fluidized Cooler The Ultimate Drying Solution for Food and Chemical
Brand: Zonelink
Price: 12 USD

Wholesale Boiling Spray Fluidized Cooler The Ultimate Drying Solution for Food and Chemical from china suppliers

Type : Fluid Bed Drying Equipment

Application : Chemicals Processing, Plastics Processing, Food Processing

Condition : New

Place of Origin : Liaoning, China

Brand Name : Zonelink

Voltage : 220V-480V (TBD)

Power : 4

Dimension(L*W*H) : 3850*800*2300mm

Key Selling Points : Long Service Life

Warranty : 1 Year

Weight (KG) : 200

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Energy & Mining

Showroom Location : None

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Pump, Motor, PLC

Heating Method : Electric Heating

Material : SUS304, SUS316

Temperature : Adjustable from ambient to 120℃

Yeild : >99%

Option time : 15-30min(depends on material)

Content at final term : -0.2%(depends on material)

Noise : ≤75dB

Price : $12,000.00/sets >=1 sets

Contact Now

Boiling Spray Fluidized Cooler The Ultimate Drying Solution for Food and Chemical

FL series vertical fluidized dryer is currently widely used in the world drying equipment, is a set of mixing and drying in the same closed container completed at a time.

Suitable for mixing and drying of powder materials. Widely used in food, chemical industry and other fields.

All parts in contact with materials are made of stainless steel, sealed by rubber inflatable sealing ring,

the size of particles can be controlled by two-flow spray gun.

Mixing and drying concentrated in the same closed container to complete, fast and efficient operation, and avoid rabbit dust flying, leakage and pollution.

The machine have beautiful shape, small wind resistance, no dead angle, easy to clean.

The powder material used for pelleting is put into a fluidized bed, and the cold air enters from the heating chamber at the rear of the main engine intermediate filtration.

The heater is heated to the temperature required for air inlet and enters the fluidized bed.

Material powder particles, in the raw material container (fluidized bed) is boiling fluidization state,

after the purification of the heated air preheating and mixing, the adhesive solution atomized spray into,

so that a number of particles gathered into the adhesive particles, due to the continuous drying of hot air material,

so that the water in the particle evaporation, adhesive solidification, this process is repeated. The formation of ideal, uniform multi-microporous spherical particles.

Fluidized Dryer Schematic Diagram

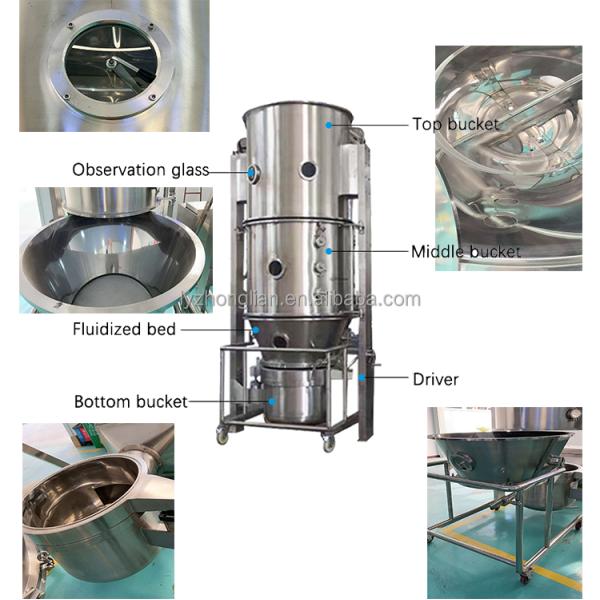

The vertical fluidized dryer is mainly composed of air inlet filtration system, air heating system,

main engine system, feeding and atomizing system, exhaust system and control system.

Bottom end into the air chamber: seat disc head for thorough cleaning.

Raw material fluidized granulation bed: It is composed of skip car, barrel body, high density mat mesh, mirror and sampler, etc.

The middle cylinder is an important part of the system, which can directly affect the effect of the finished product

by givingenough boiling fluidization diffusion area to the material.

Top dust removal filter chamber: for different raw materials to use different dust removal methods, as far as possible to increase the yield.

Atomized spray gun, gun/three stainless steel fluid according to the different material can choose a variety of forms such as spray gun,

has small volume, light weight, easy to clean and maintain, etc.

PRODUCT SPECIFICATIONS

Type					3	5	30	60	120	200	300
Item			unit		3	5	30	60	120	200	300
Container of raw material	Dim.	mm	300	400	700	1000	1200	1400	1600
Container of raw material		Volume	L	12	22	100	220	420	670	1000
Production capacity	min	kg/batch	1.6	4	15	30	80	100	150
Production capacity		max	kg/batch	4	6	36	72	140	240	360
Consume of steam			kg/batch	12	23	70	140	211	282	366
Amount of compressed air			m³/min	0.3	0.3	0.3	0.6	0.6	0.9	1.1
Power of fan			KW	2.2	4	5.5	11	18.5	22	30
Temperature			℃	Adjustable from ambient to 120
Yield			%	>99
Option time			min	15-30(depends on material)
Content at final term			%	-0.2(depends on material)
Noise			dB	≤75
Height of main machine			mm	2100	2300	2500	3000	3300	3800	4000

The Vertical Fluidized Dryer is packed in standard export wooden cases.
